Roll Press / Laminating / Dry Oven

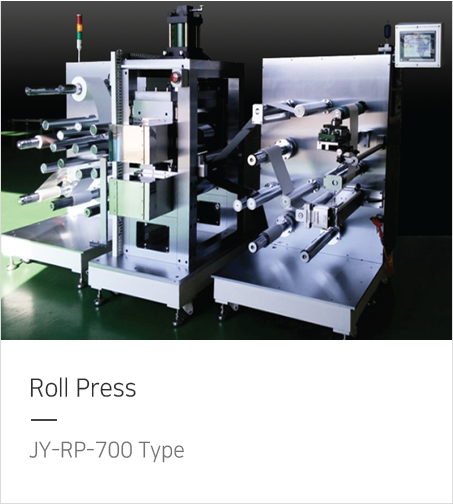

Roll Press M/C (JY-RP-700 Type)
Web Material
Al, Foil, Filter
Web Width
Min 200㎜ ~ Max 500㎜
Top Temp
150℃
Press pressure
20ton ~ 30ton
Press Type
Upper Roll & Lower Roll

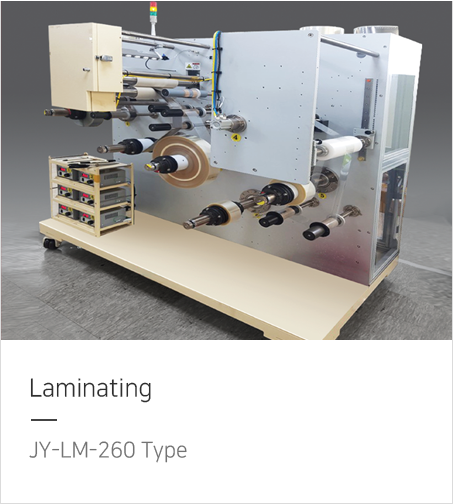

Laminating M/C (JY-LM-260 Type)
Web Material
Al, Foil, Tape, PE Film
Web Width
50㎜ ~ 200㎜
Top Temp
120℃
Press pressure
260㎜
Press
Air Press Typel
Layer
2,3,4 Type
Dry Oven (JY-DO-700Type)
Web Material
Foil, Tape, Film
Web Width
Min 200㎜ ~ Max 500㎜
Top Temp
150℃ Max
Press pressure
Belt Type
Press Type
Heater, UV, Hot Air Nozzle Type
